Breeze Kite Plan

Breeze

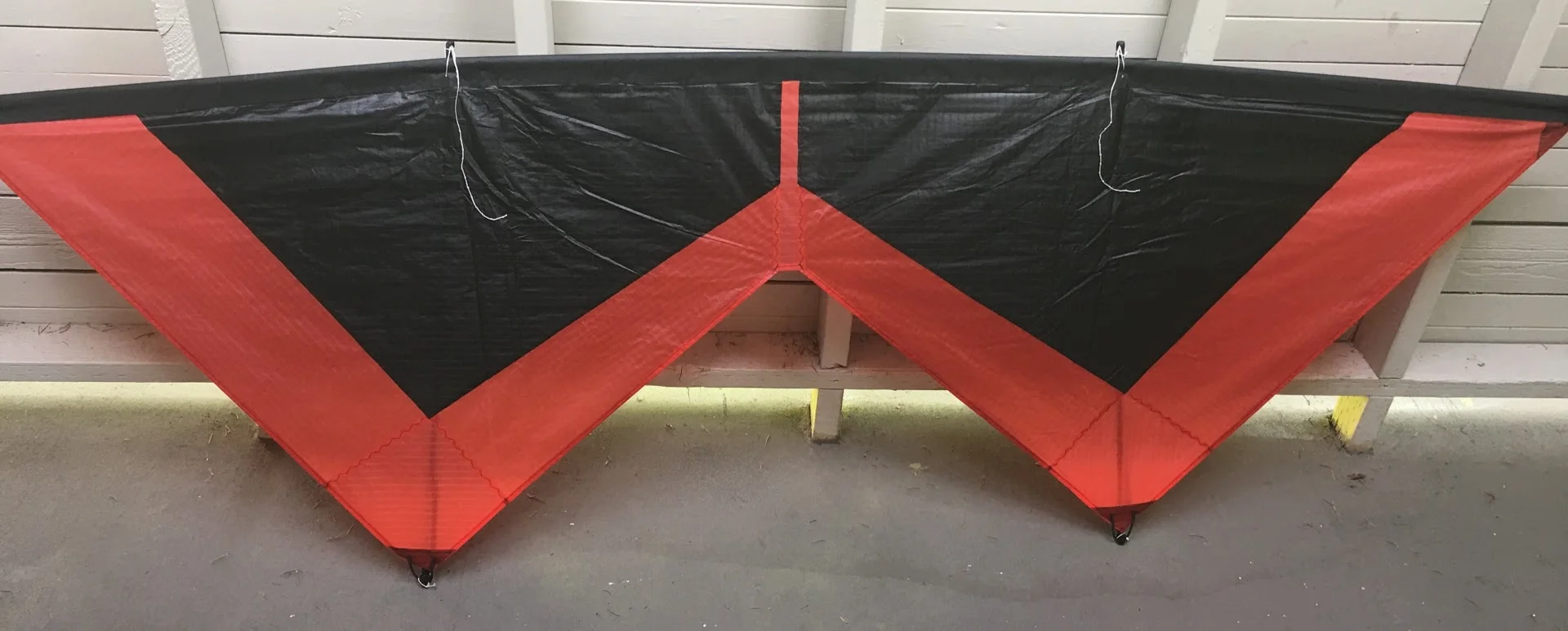

Breeze is a quad line kite primarily built for indoor use. The kite is smaller than most indoor quad line kites and was designed to provide more maneuverability than other indoor quad line kites, without sacrificing too much sail pressure.

This is my go-to indoor quad line kite.

License

This plan is free for non-commercial use. If you would like to buy a Breeze, I have them available for order on my Shop.

This work is licensed under a Creative Commons Attribution-NonCommercial 4.0 International License.

Sail

Materials

2 yards of Icarex (alternative ripstop may be substituted, but Icarex is highly recommended)
1 yards of 2”-wide 3.9oz Dacron
1 yard of 4"-wide 3.9oz Dacron
3 yards of 2"-wide 1.5oz nylon
¼” Double sided tape
Bonded Polyester thread
- Other thread may work, but I’ve found this to work best when sewing through tape
3/32" Bungee cord
2 Enclosed 2p Quad Line Endcaps
2 Open 2p Quad Line Endcaps
2 2p Quad Line T Fittings
2 Small Zipties
5 Skyshark 2P
.196 pultruded carbon
100lb Spectra bridle line
BSI Tire glue

Recommended Tools

48" metal ruler
- Metric + Imperial
18" metal ruler
- Metric + Imperial
Bone folder
Clear protractor
Fabric scissors
Thread scissors
Hemostats
Tweezers
Soldering iron
Lighter
Sewing Machine
- Must support a straight, single-step zig-zag, and multi-step zig-zag stitches.
- If it doesn't have a built in walking foot, get a walking foot attachment
90/14 universal sewing needles
Aluminum tape
Ram Board
Wire threading tool
Mechanical pencil
Fabric weights
A heat-proof working surface, like glass or metal
Dremel with abrasive wheels
Mini cut-off saw
Face mask

Plans

Blueprint and Panel Templates PDF

I recommend printing plans at an office supply store. I use Staples and have them printed as "blueprints" on 36"x48" paper, printed at actual size.

Bridle

There is no real bridle on the breeze, but I suggest making some pigtails to attach your lines to. I set mine up with adjustable pigtails attached to the kite on the top lines, and I keep my handles free of extra knots to avoid tangles while flying.

Framing

The Breeze is a small Hadzicki Wing sail and uses 5 27" spars. Skyshark 2P are ideal. You will need 5 spars, and 2 internal ferrules, which can be made from .196 pultruded carbon, by cutting to ~3" - ~4" lengths.
