Hadzicki Wing T Fitting
Description

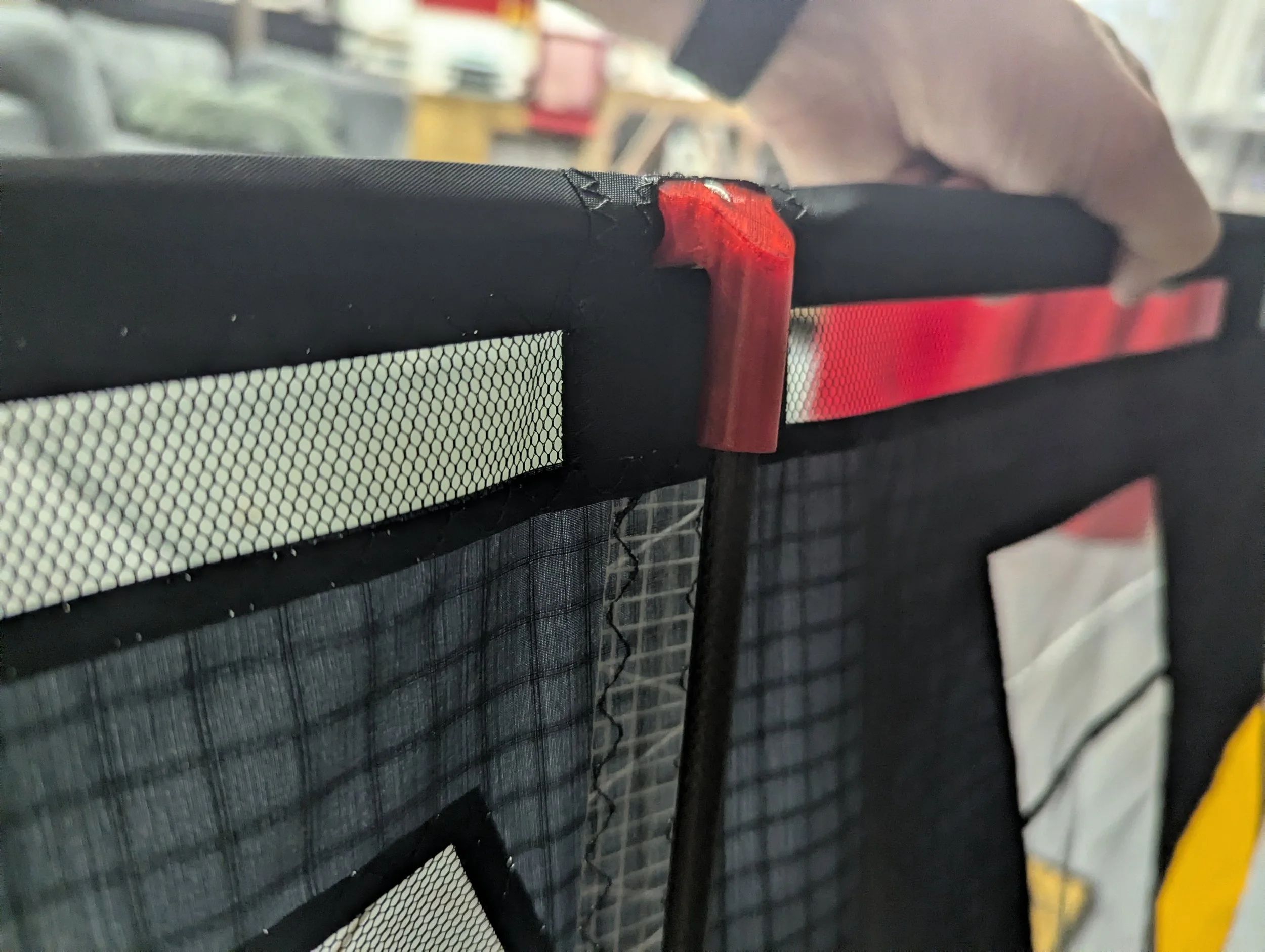

A T fitting for a Hadzicki Wing quad line kites. Fits snuggly on heavy 1/4"ID rods (e.g. Revolution 4 wrap)
The T fitting is at an angle that matches the usual angle of the vertical spars. It includes a hole in the middle and a track for clean bridle line attachment. It is also offset from the vertical spar to provide a buffer so that leading edge landings don't break the leading edge spar.
In the Fusion 360 project, the hole sizes, and the fitting angle can be adjusted.
V2 Fitting
This is a newer version of the fitting. It makes the kite more resilient against hard landings. If you still want the old V1 fitting, details are futher down the page.
Resources:
| Name | Description |
|---|---|
| BufferedTFitting8mm.stl | Sized for 1/4"ID spars like Skyshark P30s, Revolution 3Wrap, or 3Wind S spars. Has internal hole diameter of 8mm. |
| BufferedTFitting9mm.stl | Sized for Skyshark CXL spars. Has an internal hole diameter of 9.1mm |
| BufferedTFitting7mm.stl | Sized for Skyshark 2P. Has internal hole diamteter of 6.9mm |
| Buffered T Fitting.f3d | Fusion 360 project for easy download. The project includes variables for easy scaling to different spar sizes |
| Fusion360 Project | The lastest version of the project hosted by Fusion 360 |
Printing Notes
I print these using Sainsmart or Oveture 95A TPU with the flat part down.
V1 Fitting
Here are files and printing notes for the old version of the T Fitting. This fitting does not have the buffer offset like V2 does, so it tends to break leading edge spars during hard landings.
Resources:
Name Description T-Fitting-Quarter-Inch.stl Sized for 1/4"ID spars like Skyshark P300s, Revolution 3Wrap, or 3Wind S spars. Has internal hole diameters of 8mm. T-Fitting-CXL.stl Sized Skyshark CXL spars. Has internal hole diameters of 9.1mm. T-Fitting-2p.stl Sized for Skyshark 2P. Has internal hole diameter of 6.9mm Quad Line T Fittings v13.f3d v13 of the fusion 360 project for easy download. The project provides variables for easy scaling to different spar sizes or fitting angles. Fusion360 Project The latest version of the project hosted by Fusion360
Printing Notes
I print these in Sainsmart 95A TPU, upside-down with build-plate supports.
